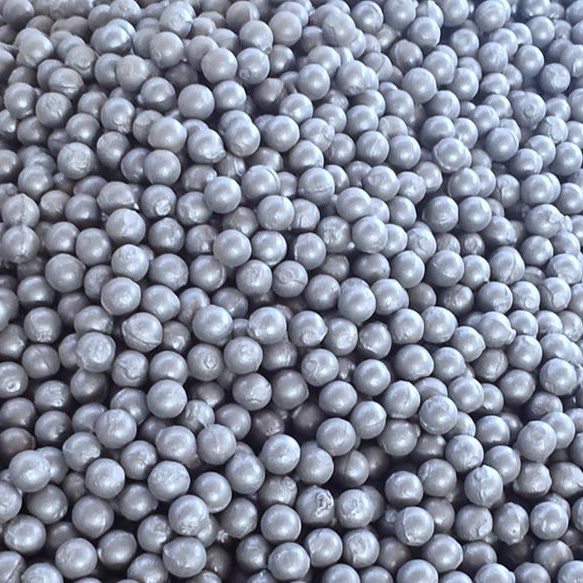

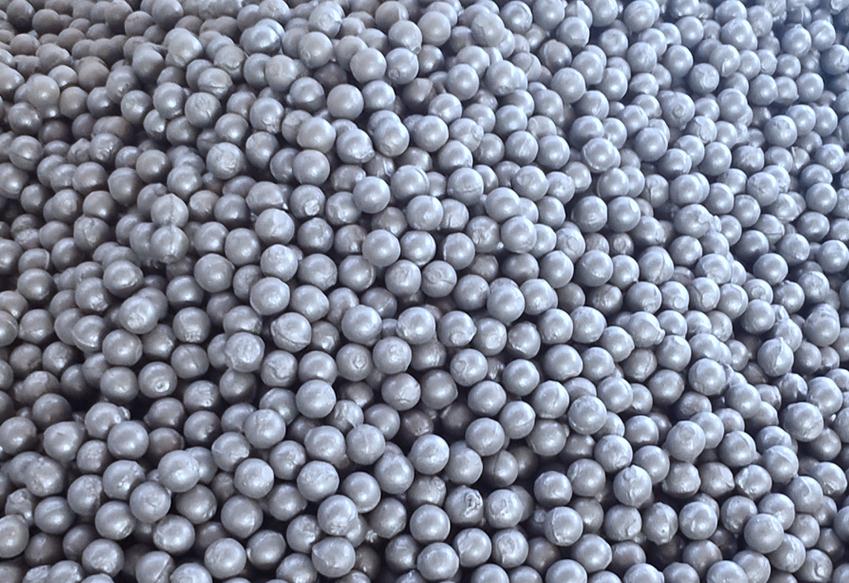

Low Chromium Cast Iron Grinding Balls

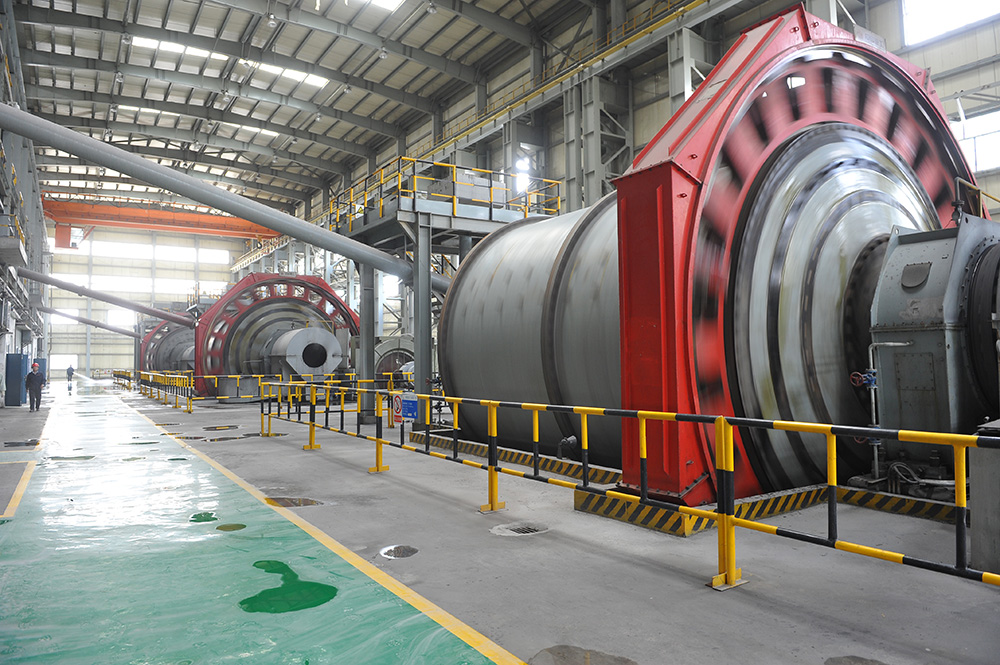

Low chromium cast grinding balls are a type of grinding media with a relatively low chromium content, typically ranging from 1%-3%. These balls are widely used in cement plants, mining, power stations, and chemical industries for grinding applications in ball mills and vertical mills.

Diameter tolerance:

Diameter(mm)	Φ<30	30<Φ<60	60<Φ<80	80<Φ<100	Φ>100
Diameter tolerance(mm)	+1,-1	+1.5,-1	+2,-1	+2.5,-1	+3,-1

Technical specification

Material	Diameter(mm)	Hardness(HRC)	Breakage rate	Impact value(J/cm²)	Drop times(times)	Micro structure
ZQCr2	17-150	>45	<1%	>1.5	≥8000	P+C

Chemical composition

Brand	Chemical composition(%)
ZQCr2	C	Si	Mn	Cr	Mo	Cu	Ni	P	S
	2.1-3.6	1.5max	0.3-1.5	1.0-3.0	0-1.0	0-0.8	–	≤0.10	≤0.10

Key Characteristics

Moderate Hardness: Typically HRC 45-55, providing a balance between wear resistance and impact toughness.

High Impact Toughness: Due to the low chromium content, these balls exhibit better toughness, making them suitable for high-impact conditions.

Average Wear Resistance: Compared to medium chromium (Cr 5%-10%) and high chromium (Cr >10%) grinding balls, low chromium balls have lower wear resistance but are more cost-effective.

Cost-Effective: Suitable for applications where grinding media lifespan is not the primary concern but cost control is important.

3. Manufacturing Process

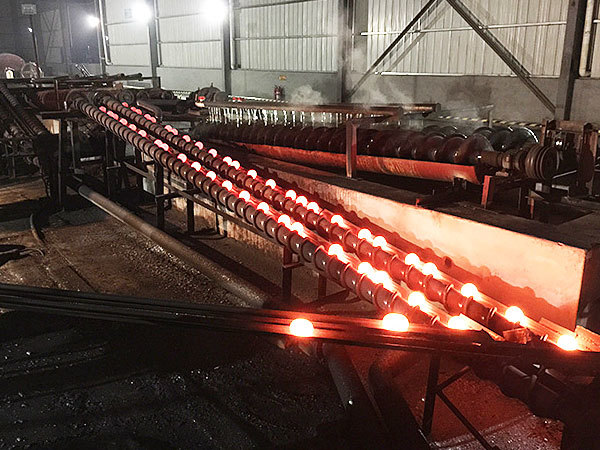

Low chromium cast grinding balls are produced using a casting process, which includes the following key steps:

Melting: Raw materials are melted in furnaces.

Casting: The molten metal is poured into molds to form balls of the desired size.

Cooling & Heat Treatment: Balls undergo quenching and tempering processes to enhance hardness and toughness.

4. Applications

Ideal for low-impact grinding conditions where high wear resistance is not the primary requirement.

Used in cement plants, ore grinding, coal grinding, and chemical processing.

Suitable for both wet grinding and dry grinding, although low chromium balls may be more susceptible to corrosion in wet environments.

5. Industry Standards

Low chromium cast grinding balls are manufactured in accordance with various industry standards:

China Standard: GB/T 17445-2009 (Cast Grinding Balls)

International Standard: ISO 3290 (General standard for steel balls, used for reference)
