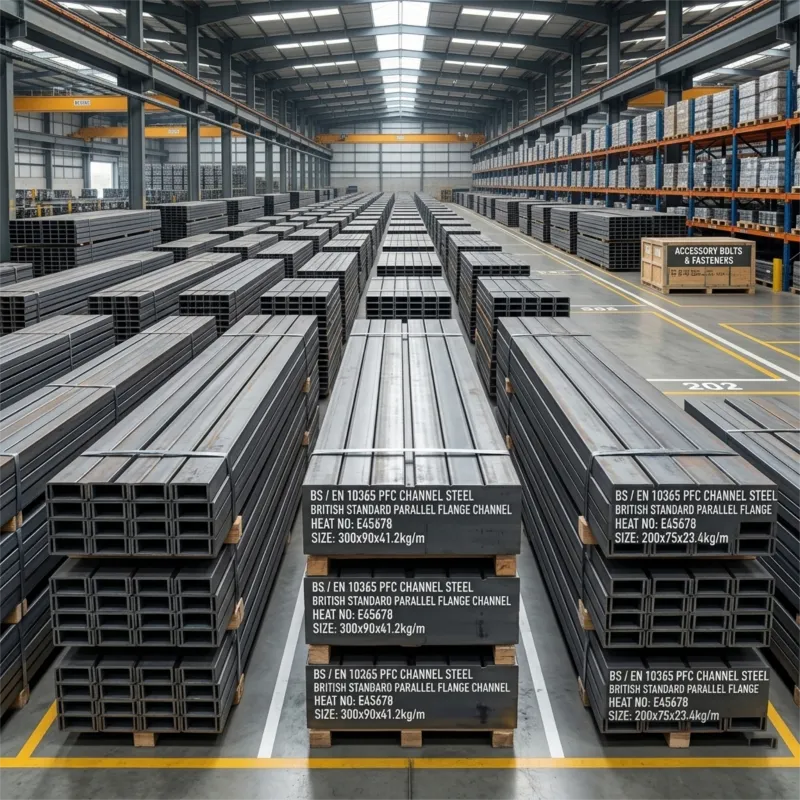

BS / EN10365 PFC Channel Steel represents the British and European standard Parallel Flange Channel (PFC) section. PFC channels are widely used in the UK, Europe, Middle East, Africa, and global EPC projects requiring British‑standard structural steel.
Compared with tapered‑flange channels, PFC channels offer:
Higher structural efficiency
Better load distribution
Improved compatibility with H‑beam and I‑beam systems
Easier fabrication and welding
PFC channels are manufactured according to BS 4‑1 and EN 10365, and are available in structural steel grades such as S235JR, S275JR, and S355JR/J0/J2.
🟦 Applicable Standards
BS 4‑1 – Structural steel sections
EN 10365 – Hot rolled steel channels, I‑beams, and H‑beams
EN 10025 – Hot rolled structural steel
EN 10279 – Tolerances for hot rolled steel channels
🟦 Available Grades
S235JR
S275JR
S355JR
S355J0
S355J2
These grades provide flexibility for general and high‑strength structural applications.
🟦 Section Type
PFC – Parallel Flange Channel
Parallel flange geometry
Higher structural efficiency than tapered‑flange channels
Ideal for building structures, machinery frames, and industrial frameworks
Designation example: PFC 200 × 75 × 23
🟦 Dimensions Range
Parameter
Range
Height (H)
50–430 mm
Flange Width (B)
25–100 mm
Web Thickness (t1)
4–16 mm
Flange Thickness (t2)
6–20 mm
Length
6 m / 9 m / 12 m / custom
Tolerance
As per EN 10279
Designation
Unit Weight (kg/m)
H (mm)
B (mm)
t_w (mm)
t_f (mm)
r (mm)
PFC 100 × 50 × 10
10.2
100
50
5.0
8.5
9
PFC 125 × 65 × 15
14.8
125
65
5.5
9.5
12
PFC 150 × 75 × 18
17.9
150
75
5.5
10.0
12
PFC 150 × 90 × 24
23.9
150
90
6.5
12.0
12
PFC 180 × 75 × 20
20.3
180
75
6.0
10.5
12
PFC 180 × 90 × 26
26.1
180
90
6.5
12.5
12
PFC 200 × 75 × 23
23.4
200
75
6.0
12.5
12
PFC 200 × 90 × 30
29.7
200
90
7.0
14.0
12
PFC 230 × 75 × 26
25.7
230
75
6.5
12.5
12
PFC 230 × 90 × 32
32.2
230
90
7.5
14.0
12
PFC 260 × 75 × 28
27.6
260
75
7.0
12.0
12
PFC 260 × 90 × 35
34.8
260
90
8.0
14.0
12
PFC 300 × 90 × 41
41.4
300
90
9.0
15.5
12
PFC 300 × 100 × 46
45.5
300
100
9.0
16.5
15
PFC 380 × 100 × 54
54.0
380
100
9.5
17.5
15
PFC 430 × 100 × 64
64.4
430
100
11.0
19.0
15
Designation
Unit Weight (kg/m)
H (mm)
B (mm)
t_w (mm)
t_r (mm)
r (mm)
CH 76 × 38 × 7
6.7
76.2
38.1
5.1
6.8
12.0
CH 102 × 51 × 10
10.4
101.6
50.8
6.1
7.6
12.0
CH 127 × 64 × 15
14.9
127.0
63.5
6.4
9.2
13.0
CH 152 × 76 × 18
17.9
152.4
76.2
6.4
9.0
14.0
CH 152 × 89 × 24
23.9
152.4
88.9
7.1
11.6
16.0
CH 178 × 76 × 21
20.8
177.8
76.2
6.6
10.3
16.0
CH 178 × 89 × 27
26.8
177.8
88.9
7.6
12.3
17.0
CH 203 × 76 × 24
23.9
203.2
76.2
7.1
11.2
17.0
CH 203 × 89 × 30
29.8
203.2
88.9
8.1
12.9
17.5
CH 229 × 76 × 26
26.1
228.6
76.2
7.6
11.2
17.5
CH 229 × 89 × 33
32.7
228.6
88.9
8.6
13.3
19.0
CH 254 × 76 × 28
28.2
254.0
76.2
8.1
10.9
19.0
CH 254 × 89 × 36
35.7
254.0
88.9
9.1
13.6
20.4
CH 305 × 89 × 42
41.8
304.8
88.9
10.2
13.7
25.7
CH 305 × 102 × 46
46.2
304.8
101.6
10.2
14.8
26.7
CH 381 × 102 × 55
55.0
381.0
101.6
10.4
16.3
28.2
CH 432 × 102 × 65
65.5
431.8
101.6
12.2
16.8
24.0
🟦 Mechanical Properties
S235JR
Property
Value
Yield Strength
≥ 235 MPa
Tensile Strength
360–510 MPa
Elongation
≥ 26%
S355JR
Property
Value
Yield Strength
≥ 355 MPa
Tensile Strength
470–630 MPa
Elongation
≥ 22%
🟦 Chemical Composition (Typical)
S355JR
Element
Max (%)
C
0.24
Mn
1.60
P
0.040
S
0.040
Si
0.55
🟦 Applications
Building structures
Industrial steel frameworks
Machinery and equipment support
Civil engineering projects
Structural reinforcement
Welded assemblies
🟦 Why Use BS / EN10365 PFC Channel Steel
Standardized British and European dimensions
Parallel flange design for improved structural efficiency
