PRODUCT PARAMETERS

European standard angle steel according to EN 10056‑1 / EN 10056‑2
Includes Equal Angle and Unequal Angle profiles
Material grades: S235JR, S275JR, S355JR/J0/J2
High strength, excellent dimensional accuracy, and wide size range

Primary Industry Usage

Building structures
Industrial steel frameworks
Machinery and equipment support
Civil engineering
Structural reinforcement

REQUEST A QUOTE

Description

Request a quote

FAQ

Description

🟦 Product Overview

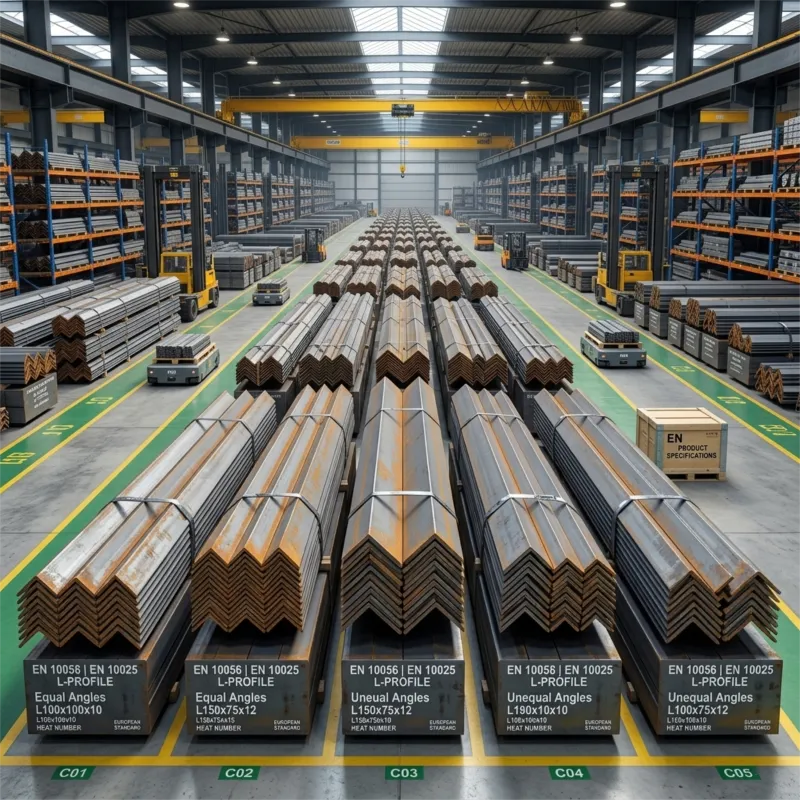

EN / DIN Angle Steel is manufactured according to EN 10056‑1 (dimensions) and EN 10056‑2 (tolerances). It includes:

Equal Angle
Unequal Angle

European angle steel is widely used in Europe, the Middle East, Africa, and global EPC projects due to its excellent structural performance, weldability, and dimensional precision.

Common material grades include S235JR, S275JR, and S355JR/J0/J2, covering both general structural steel and high‑strength structural applications.

EN / DIN Angle Steel is ideal for building structures, industrial frameworks, machinery frames, and welded assemblies.

🟦 Applicable Standards

EN 10056‑1 – Dimensions of hot‑rolled equal and unequal leg angles
EN 10056‑2 – Tolerances for hot‑rolled equal and unequal leg angles
EN 10025 – Hot rolled structural steel
EN 10163 – Delivery requirements for surface conditions

🟦 Available Grades

S235JR
S275JR
S355JR
S355J0
S355J2

These grades are widely used in European structural engineering and global EPC projects.

🟦 Section Types

Equal Angle (EN Standard)

Equal leg lengths
Suitable for structural and architectural applications
Designation example: L 100 × 100 × 10

Unequal Angle (EN Standard)

Different leg lengths
Ideal for bracing, framing, and reinforcement
Designation example: L 150 × 90 × 12

🟦 Dimensions Range

Type	Leg Size (mm)	Thickness (mm)	Length
Equal Angle	20×20 – 200×200	3–20	6 m / 9 m / 12 m / custom
Unequal Angle	30×20 – 250×90	3–20	6 m / 9 m / 12 m / custom

Tolerance: As per EN 10056‑2

Designation	Unit Weight (kg/m)	H (mm)	B (mm)	t (mm)	r₁ (mm)	r₂ (mm)	Sectional Area  (cm²)
L 100×65×7	8.77	100	65	7	10	5.0	11.2
L 100×65×8	9.94	100	65	8	10	5.0	12.7
L 100×65×9	11.1	100	65	9	10	5.0	14.1
L 100×65×10	12.3	100	65	10	10	5.0	15.6
L 100×65×12	14.5	100	65	12	10	5.0	18.5
L 110×70×10	13.4	110	70	10	10	5.0	17.1
L 110×70×12	15.9	110	70	12	10	5.0	20.3
L 120×80×8	12.2	120	80	8	11	5.5	15.5
L 120×80×10	15.2	120	80	10	11	5.5	19.1
L 120×80×12	17.8	120	80	12	11	5.5	22.7
L 125×75×8	12.2	125	75	8	11	5.5	15.5
L 125×75×9	13.6	125	75	9	11	5.5	17.3
L 125×75×10	15.0	125	75	10	11	5.5	19.1
L 125×75×12	17.8	125	75	12	11	5.5	22.7
L 130×90×10	16.4	130	90	10	11	5.0	21.2
L 130×90×12	19.7	130	90	12	11	6.0	25.1
L 130×90×14	22.8	130	90	14	11	6.0	29.0
L 140×90×8	14.0	140	90	8	11	5.5	17.9
L 140×90×10	17.4	140	90	10	11	5.5	22.1
L 140×90×12	20.6	140	90	12	11	5.5	26.3
L 140×90×14	23.8	140	90	14	11	5.5	30.4
L 150×75×9	15.4	150	75	9	12	6.0	19.6
L 150×75×10	17.0	150	75	10	12	6.0	21.7
L 150×75×11	18.6	150	75	11	12	6.0	23.7
L 150×75×12	20.2	150	75	12	12	6.0	25.7
L 150×90×10	18.2	150	90	10	12	6.0	23.2
L 150×90×11	19.9	150	90	11	12	6.0	25.3
L 150×90×12	21.6	150	90	12	12	6.0	27.5
L 150×90×15	26.6	150	90	15	12	6.0	33.9
L 150×100×12	22.5	150	100	12	12	6.0	28.7
L 150×100×14	26.1	150	100	14	12	6.0	33.1
L 200×90×10	23.3	200	90	10	15	7.5	34.9
L 200×90×12	27.8	200	90	12	15	7.5	39.2
L 200×100×14	31.6	200	100	14	15	7.5	40.3
L 200×100×15	33.7	200	100	15	15	7.5	43.0

Designation	Unit Weight (kg/m)	H (mm)	t (mm)	r₁ (mm)	r₂ (mm)	Sectional Area (cm²)
L 20×20×3	0.879	20	3	3.5	2.0	1.12
L 25×25×3	1.11	25	3	3.5	2.0	1.42
L 25×25×4	1.45	25	4	3.5	2.0	1.85
L 30×30×3	1.36	30	3	5.0	2.5	1.74
L 30×30×4	1.78	30	4	5.0	2.5	2.27
L 35×35×4	2.09	35	4	5.0	2.5	2.67
L 40×40×4	2.42	40	4	6.0	3.0	3.08
L 40×40×5	2.97	40	5	6.0	3.0	3.79
L 45×45×4	2.74	45	4	7.0	3.5	3.49
L 45×45×4.5	3.06	45	4.5	7.0	3.5	3.90
L 45×45×5	3.38	45	5	7.0	3.5	4.30
L 50×50×4	3.06	50	4	7.0	3.5	3.89
L 50×50×5	3.77	50	5	7.0	3.5	4.80
L 50×50×6	4.47	50	6	7.0	3.5	5.69
L 50×50×7	5.15	50	7	7.0	3.5	6.56
L 55×55×5	4.18	55	5	8.0	4.0	5.32
L 55×55×6	4.95	55	6	8.0	4.0	6.31
L 60×60×4	3.70	60	4	8.0	4.0	4.71
L 60×60×5	4.57	60	5	8.0	4.0	5.82
L 60×60×6	5.42	60	6	8.0	4.0	6.91
L 60×60×8	7.09	60	8	8.0	4.0	9.03
L 65×65×6	5.91	65	6	9.0	4.5	7.53
L 65×65×7	6.83	65	7	9.0	4.5	8.70
L 65×65×8	7.73	65	8	9.0	4.5	9.85

Designation	Unit Weight (kg/m)	H=B (mm)	t (mm)	r₁ (mm)	r₂ (mm)	Sectional  Area  (cm²)
L 70×70×6	6.38	70	6	9	4.5	8.13
L 70×70×7	7.38	70	7	9	4.5	9.40
L 70×70×8	8.37	70	8	9	5.0	10.7
L 70×70×9	9.32	70	9	9	4.5	11.9
L 75×75×4	4.65	75	4	9	4.5	5.93
L 75×75×5	5.76	75	5	9	4.5	7.34
L 75×75×6	6.85	75	6	9	4.5	8.73
L 75×75×7	7.93	75	7	9	4.5	10.1
L 75×75×8	8.99	75	8	9	4.5	11.4
L 75×75×10	11.1	75	10	9	4.5	14.1
L 80×80×5	6.17	80	5	10	5.0	7.86
L 80×80×6	7.34	80	6	10	5.0	9.35
L 80×80×7	8.49	80	7	10	5.0	10.8
L 80×80×8	9.63	80	8	10	5.0	12.3
L 80×80×10	11.9	80	10	10	5.0	15.1
L 90×90×6	8.28	90	6	10	5.0	10.5
L 90×90×7	9.61	90	7	11	5.5	12.2
L 90×90×8	10.9	90	8	11	5.5	13.9
L 90×90×9	12.2	90	9	11	5.5	15.5
L 90×90×10	13.4	90	10	11	5.5	17.1
L 90×90×11	14.7	90	11	11	5.5	18.7
L 100×100×6	9.26	100	6	12	6.0	11.8
L 100×100×7	10.7	100	7	12	6.0	13.7
L 100×100×8	12.2	100	8	12	6.0	15.5
L 100×100×10	15.0	100	10	12	6.0	19.2
L 100×100×12	17.8	100	12	12	6.0	22.7
L 110×110×8	13.4	110	8	12	6.0	17.1
L 110×110×10	16.6	110	10	13	6.5	21.2
L 110×110×12	19.7	110	12	13	6.5	25.1

Designation	Unit Weight (kg/m)	H=B (mm)	t (mm)	r₁ (mm)	r₂ (mm)	Sectional Area (cm²)
L 120×120×8	14.7	120	8	13	6.5	18.7
L 120×120×10	18.2	120	10	13	6.5	23.2
L 120×120×11	19.9	120	11	13	6.5	25.4
L 120×120×12	21.6	120	12	13	6.5	27.5
L 120×120×13	23.3	120	13	13	6.5	29.7
L 120×120×15	26.6	120	15	13	6.5	33.9
L 120×120×16	28.3	120	16	13	6.5	36.0
L 130×130×10	19.8	130	10	14	7.0	25.2
L 130×130×12	23.5	130	12	14	7.0	30.0
L 130×130×13	25.4	130	13	14	7.0	32.3
L 130×130×14	27.2	130	14	14	7.0	34.7
L 130×130×16	30.8	130	16	14	7.0	39.3
L 150×150×10	23.0	150	10	16	8.0	29.3
L 150×150×12	27.3	150	12	16	8.0	34.8
L 150×150×13	29.5	150	13	16	8.0	37.6
L 150×150×14	31.6	150	14	16	8.0	40.3
L 150×150×15	33.8	150	15	16	8.0	43.0
L 150×150×16	35.9	150	16	16	8.0	45.7
L 150×150×18	40.1	150	18	16	8.0	51.0
L 150×150×20	44.2	150	20	16	8.0	56.3
L 160×160×14	33.9	160	14	17	8.5	43.2
L 160×160×15	36.2	160	15	17	8.5	46.1
L 160×160×16	38.4	160	16	17	8.5	49.0
L 160×160×17	40.7	160	17	17	8.5	51.8

Designation	Unit Weight (kg/m)	H=B (mm)	t (mm)	r₁ (mm)	r₂ (mm)	Sectional Area (mm² ×10⁻²)
L 180×180×13 ^+/x	35.7	180	13	18	9.0	45.5
L 180×180×14 ^+/x	38.3	180	14	18	9.0	48.8
L 180×180×15 ^+/x	40.9	180	15	18	9.0	52.1
L 180×180×16^+/-x	43.5	180	16	18	9.0	55.4
L 180×180×17 ^+/x	46.0	180	17	18	9.0	58.7
L 180×180×18 ^+/-x	48.6	180	18	18	9.0	61.9
L 180×180×19 ^+/x	51.1	180	19	18	9.0	65.1
L 180×180×20 ^+/x	53.7	180	20	18	9.0	68.3
L 200×200×15 ^+/x	45.6	200	15	18	9.0	58.1
L 200×200×16 ^+/-x	48.6	200	16	18	9.0	61.8
L 200×200×17 ^+/x	51.4	200	17	18	9.0	65.4
L 200×200×18 ^+/-x	54.4	200	18	18	9.0	69.0
L 200×200×19 ^+/x	57.1	200	19	18	9.0	72.7
L 200×200×20 ^+/-x	59.9	200	20	18	9.0	76.3
L 200×200×21 ^+/x	62.8	200	21	18	9.0	79.9
L 200×200×22 ^+/x	65.6	200	22	18	9.0	83.5
L 200×200×23 ^+/x	68.3	200	23	18	9.0	87.1
L 200×200×24 ^+/-x	71.1	200	24	18	9.0	90.6
L 200×200×25 ^+/x	73.9	200	25	18	9.0	94.1
L 200×200×26 ^+/x	76.6	200	26	18	9.0	97.6
L 250×250×20 ⁺	75.6	250	20	18	9.0	96.3
L 250×250×21 ⁺	79.2	250	21	18	9.0	100
L 250×250×22 ⁺	82.8	250	22	18	9.0	106
L 250×250×23 ⁺	86.4	250	23	18	9.0	110
L 250×250×24 ⁺	90.0	250	24	18	9.0	115
L 250×250×25 ⁺	93.5	250	25	18	9.0	119
L 250×250×26 ⁺	97.0	250	26	18	9.0	124
L 250×250×27 ⁺	101	250	27	18	9.0	128
L 250×250×28 ^+/-	104	250	28	18	9.0	132
L 250×250×35 ^+/-	128	250	35	18	9.0	163

🟦 Mechanical Properties

S235JR

Property	Value
Yield Strength	≥ 235 MPa
Tensile Strength	360–510 MPa
Elongation	≥ 26%

S355JR

Property	Value
Yield Strength	≥ 355 MPa
Tensile Strength	470–630 MPa
Elongation	≥ 22%

🟦 Chemical Composition (Typical)

S355JR

Element	Max (%)
C	0.24
Mn	1.60
P	0.040
S	0.040
Si	0.55

🟦 Applications

Building structures
Industrial steel frameworks
Machinery and equipment support
Civil engineering projects
Structural reinforcement
Welded assemblies

🟦 Why Use EN / DIN Angle Steel

Standardized European dimensions
High structural strength
Excellent weldability and fabrication properties
Wide range of sizes (Equal & Unequal)
Suitable for global EPC and engineering projects

🟦 Why Choose WelSteels

Full range of EN 10056 equal & unequal angles
S235 / S275 / S355 grades available
CNC cutting, drilling, and fabrication services
SGS / BV third‑party inspection available
Export‑grade seaworthy packaging
Fast delivery from stock and mill production
